CASELLA - Noise Monitoring Instruments


dBadge2 IS Noise Dosimeters
CEL-24X & CEL-63X Sound Level Meter
CEL-633 Real Time Analyzer
Insight Software


                                                 home » casella index » casella noise monitoring instrument index »

dBadge2 CEL-632 Logging SLM Software
Casella dBadge2 Noise Dosimeter with Bluetooth Remote Monitoring

Casella dBadge2™ Noise Dosimeter with Bluetooth Connectivity For Remote Control & Monitoring

Control the dBadge2 intrinsicaly safe noise dosimeters. View noise exposure data from multiple workers, REMOTELY right on your cellphone or tablet! Now you can access each ANSI/IEC standards compliant dBadge2 IS dosimeter directly from your HHD using the built-in wireless Bluetooth®4.0 connection and the free Casella Airwave™ App!  Monitoring distance of 82 feet/25 meters.

What this means is you no longer have to interrupt the worker and their work to ensure you noise exposure data are being gathered as expected, you can see overall exposure metrics, including averages, max and peak; instrument status, and all without even being in sight of a worker under test!

And - you can start, stop and pause a test as many times as you like, remotely, without ever bothering the worker again. If you choose, you can email or text summary noise exposure results right from your tablet or smartphone directly to your office, plant managers, supervisors, HR staff, or, as a consultant, to a senior manager at a client firm that is several time zones away!

Adobe Acrobat pdf format - Casella  dBadge2 Noise Dosimeter Casella dBadge2 IS Noise Dosimeter Brochure

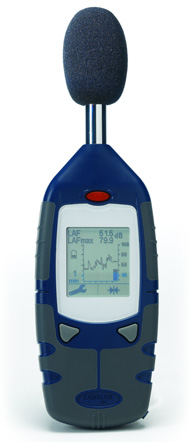

Casella CEL-24X Series Basic Type 2 Sound Level Meter

Casella CEL-24X Series Basic Type 2 Sound Level Meter

The CEL-24X Series includes the following models: CEL-240, CEL- 242, CEL-244 and CEL-246. Combining accurate and stable Digital Signal Processing technology with simplicity and low cost, the CEL-24X series is the very latest in the CEL range of general purpose sound level meters. They are ideal for most general noise measurement tasks in a broad range of applications. Compliant with ANSI and IEC accuracy specifications for Type 2 Sound Level Meters.

There are two main models in this series: the CEL-240 basic meter and the CEL-244 integrating basic meter, and two additional variants that feature on-board memory (CEL-242 and the CEL-246). CEL-24X series meters are ideal instruments for basic workplace safety and industrial hygiene noise measurement.

        Adobe Acrobat pdf format - Casella  CEL-24o Series Sound Level Meter Casella CEL-24X Series Sound Level Meter Brochure

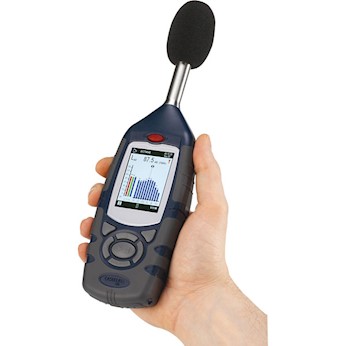

Casella CEL-63X Series Type 1, Type 2 Sound Level Meter
CEL-63X SLM with Vibrant Color Display

Casella CEL-630 Type 1/Type 2 Occupational Real Time
Sound Level Meter with Octave Band Analyzer

The The CEL-630 series meters can be specified to meet ANSI/IEC type 1 or Type 2 accuracy classifications. Standard one-half inch precision condenser microphones give the CEL-630 series a single wide measurement range from 20 to 140 dB without the need to adjust anything. This greatly simplifies the accurate collection of data since it removes the guesswork of selecting the right range before recording highly variable noise levels.

Three models are available and are designated as A, B and C versions. These differ in the amount of frequency detail they are able to measure and display. ‘A’ version meters provide the overall broadband results with A, C and Z (unweighted) channels for all measurements. B version meters add the capability to record 11 simultaneous full (1/1) octave bands from 16 Hz to 16 kHz while the C version models add 33 one-third octave band measurements from 12.5 Hz to 20 kHz.

All results are viewed on the high resolution quarter VGA LCD that uses color as an indicator to guide the new (or experienced) user through the measurement procedure. A backlight function allows viewing the meter display even in very low light levels and can be activated with a fixed timer or by a simple button press. Color bars at the top and bottom of the screen indicate to the user which mode the meter is currently in for clarity and ease of use. Red means the instrument is in standby mode, green means running and collecting data and blue shows recalled answers from the memory.

Run results can be stored for later retrieval by the user using the integral high speed USB interface. Measurement files can be read using the CEL-63X plugin which is available for the Casella Insight Database Management Software. Results that include audio files where they have been captured can be downloaded so that results from the sound level meter and CEL noise dosimeters can be integrated into a single comprehensive report for management use if required.



Adobe Acrobat pdf format - Casella  CEL-630 series Model Comparison Chart Casella CEL-63X Series Model Comparison Chart

  Adobe Acrobat pdf format - Casella  CEL-630 Sound Level Meter Brochure Casella CEL-630 Series Sound Level Meter Brochure

CEL-63X Sound Level Meter Memory Recall Screen Shot

CEL-63X Memory Recall Screen Shot

CEL-632 Datalogging Real Time Analyzer with Octave Band Filters

The CEL-632 has all of the features of the CEL-630 model in the CEL-63X range plus the ability to record regular noise samples at fixed intervals during a measurement making it the ideal choice for many basic environmental surveys or for use by industrial hygienists.

All the CEL-632 Type 1 and Type 2 meters measure with the Slow, Fast, Impulse and Peak responses simultaneously and calculate the time average noise level with the 3, 4 and 5 dB exchange rates in every run. The maximum, minimum and time average noise levels are calculated and stored for all measurements with all the valid combinations of frequency weightings and time responses so that the user will always have a full picture of what happened without having to be concerned about the correct setup configuration to use for a specific measurement. Measurements can be paused to remove unwanted noises from a survey and up to 999 separate measurements can be saved into the memory of the meter for later download to computer.

Three models are available designated as A, B and C versions. These differ in the amount of detail they are able to display as far as the frequency content of the noise is concerned. A version meters provide the overall broadband results with the A, C and Z (unweighted) channel for all measurements. B version meters add the capability to record 11 simultaneous octave bands from 16 Hz to 16 kHz while the C version models add 33 third octave band measurements from 12.5 Hz to 20 kHz.

Run results can be stored for later retrieval by the user using the integral high speed USB interface. Measurement files can be read using the CEL-63X plugin which is available for the Casella Insight Database Management Software. Results that include audio files where they have been captured can be downloaded so that results from the sound level meter and CEL noise dosimeters can be integrated into a single comprehensive report for management use if required.

Adobe Acrobat pdf format - Casella CEL-632 Real Time RTA Analyzer Casella CEL-632 Series Real Time Analyzer Brochure


CEL-633 Sound Level Meter Real Time Analyzer Screen Shot

Screen Shot - 63X Series Analyzers

CEL-633 Sound Level Meter Screen Shot with markers

Casella CEL-633 Type 1 & Type 2 Wide Range
Integrating Logging Environmental Real Time Analyzer

The CEL-633 meter is an advanced version of the popular CEL-632 logging sound level meter and is designed specifically to appeal to those users looking to do studies in environmental noise situations such as wind turbines or transportation studies. It can also be used to investigate specific noisy products with a view to controlling the noise output to meet mandated limits.

Three models are available designated as A, B and C versions. These differ in the amount of detail they are able to display as far as the frequency content of the noise is concerned. A version meters provide the overall broadband results with the A, C and Z (unweighted) channel for all measurements. B version meters add the capability to record 11 simultaneous octave bands from 16 Hz to 16 kHz while the C version models add 33 third octave band measurements from 12.5 Hz to 20 kHz..

All the CEL-633 meters measure with the Slow, Fast, Impulse and Peak responses simultaneously and calculate the time average noise level with the 3, 4 and 5 dB exchange rates in every run. The maximum, minimum and time average noise levels are calculated and stored for all measurements with all the valid combinations of frequency weightings and time responses so that the user will always have a full picture of what happened without having to be concerned about the correct setup configuration to use for a specific measurement. Measurements can be paused to remove unwanted noises from a survey and up to 999 separate measurements can be saved into the memory of the meter for later download to computer.

The CEL-633 meters are available to satisfy both the ANSI/IEC type 1 and Type 2 accuracy classifications by the choice of the appropriate microphone capsule. Both of the standard half inch diameter microphones give the CEL-633 meters a single wide measurement range from 20 to 140 dB without the need to change ranges. This will greatly simplify the collection of results since it removes the requirment to select the right range before starting to record the changing noise levels. The preamplifier is removeable from the body of the meter allowing remote applications such as environmental noise measurements in waterproof kit cases.

The CEL-633 meters can be powered from an external 12 Vdc source such as a mains supply or car battery for extended measurements and an ac (or optional dc) output signal is available to feed other recording instruments if required.

Adobe Acrobat pdf format - Casella  CEL-633 Real Time RTA Analyzer Brochure Casella CEL-633 Series Real Time Analyzer Brochure

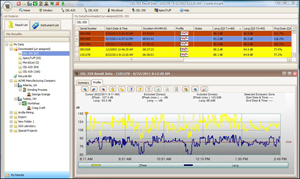

Casella Insight Data Management Softare Screen Shot of Graphs


Casella Insight Data Management Software

Powerful Analysis and Reporting Software Casella Insight is a completely new integrated software suite that works with the current range of popular Casella and CEL instruments including Tuff™ sampling pumps and Microdust Pro dust monitors. It also integrates the CEL-35X dBadge dosimeter series and the CEL-62X & CEL-63X real time sound level analyzer ranges. As a single program that can interface the entire range of Casella and CEL instruments, results are stored in one database ready for analysis and reporting. Casella Insight is the ideal way to manage and analyze your industrial hygiene or environmental measurements and present your results to workers, colleagues, management, regulators and other interested stakeholders.


Adobe Acrobat pdf format - Casella  Insight Date Management Software Brochure Casella Insight Data Management Software Brochure
