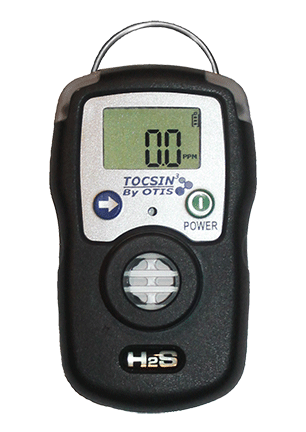

OI-315 TOCSIN3 Single Gas
Detector
Otis
Instruments Model OI-315 gas detector is a personal safety device
designed to detect the presence of toxic gases in ambient air. When
activated, the OI-315 continuously monitors ambient air for the
presence of H2S, CO, O2, SO2, H2, or NH3 (whichever unit-type is
purchased) and alerts the user, to potentially unsafe exposure with
visual, vibrating, and audible alarms.
The
OI-315 features an alligator clip that allows it to be worn on personnel
in the field at all times, as well as: rubber enclosure for shock
prevention, water/dust proof enclosure, adjustable alarm set points,
LCD display with LED backlight, data logging capability, user-replaceable
sensor element, and user-replaceable battery..
Sensors for H2S, CO, O2, SO2, H2, NH3
Real-Time
gas readings
User
replaceable sensors & batteries
|
OI-315 TOCSIN3 Single Gas Detector
Technical Specifications
|
| Measuring
Type |
Diffusion |
| Size
|
2.3"H x 3.58"W x 1.6"D
(54 mm W x 91 mm H x 32 mm D) |
| Weight |
4.23
Oz (120 g) including battery |
| Power |
CR2
Lithium battery 3V OR SB-AA02 Lithium 1/2 AA, 3.6v/1.2Ah |
| Battery
Life |
1.2
years (8 hours of use per day) |
| Standard
Gases |
Hydrogen
Sulfide - H2S
Carbon Monoxide - CO
Oxygen - O2
|
| Exotic
Gas |
Ammonia
- NH3
Hydrogen - H2
Sulfur Dioxide - SO2 |
| Operating
Temperature |
-4°F
to +122°F (-20°C to +50°C)
|
| Humidity |
5%
to 95% RH (non-condensing) |
| Event
Log |
20
alarm events |
| Programmable
Set Modes |
Alarm
value (low and high alarm)
Date and time
Calibration |
| Alarms
|
Visual,
Vibrating, Audible (minimum 90dB @ 10 cm) |
| Alarm
Level Set |
Programmable
within detection range |
| Parameter
Control: |
Front
2-switch (calibration, maintenance, alarm setting) |
| Certifications |
Ex ia
IIC T4 IP67 (KGS, ATEX)
|
| Warranty |
2
years from purchase |
|
Otis
OI-315 Single Gas Data Sheet
Otis
OI-315 CO Cockpit CO Manual
Otis
OI-315 H2S Single Gas Manual
|
WARNING!
Otis Instruments equipment should only be used in conjunction
with the manufacturer's instructions.
Failure
to follow such instructions could result in serious injury or
fatalities.
|
