Apex2 IS Models are Intrinsically Safe
|
Casella
Apex2 IS
Personal Air Sampling Pump
The Apex2 IS (intrinsically
safe) with a flow range from 1000-5000, and low flow range of 5-500
ml/min with adapter, are the new generation of personal sampling pumps
with battery run times > 9 hours and bag sampling outlet for grab samples.
With the addition
of Bluetooth® Connectivity, monitor the sampling from your mobile device
without having to disturb the wearer. Email run data alongside any photos
or notes to make your reporting easier. Includes a user lock to avoid
any interference during a run, and highly visible status indicator.
The
slim ergonomic design makes the pump less obtrusive to the wearer allowing
them to carry on with their job while being monitored. A sturdy clip
with a lifetime guarantee means it is secure and the detachable rubber
boot guards against knocks. Ingress resistant to IP65 means that you
can use it in the harshest environments and its smooth finish means
it is easy to decontaminate. Three models to choose from: Apex2 IS,
Apex2 IS Plus and Apex2 IS Pro covering a range of basic models to fully
programmable pumps.
Casella Apex2IS
Data Sheet
Apex2IS
User Manual
Apex2IS Quick Start
Field Guide
|

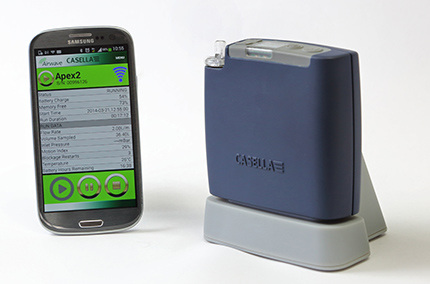

Apex2 IS Pump with Bluetooth®
Connectivity
|
Bluetooth®
4.0 Connectivity
Use with Apple or Android Devices

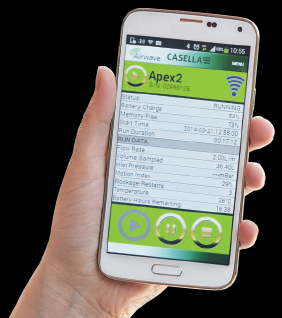

Monitor your Apex2
IS pump remotely with Bluetooth 4.0* and the supporting Airwave Apple
or Android™ App on your phone or tablet. There is no need to disturb
the wearer from what they are doing when you can view the status of
the pump, or even start, stop and pause it direct from your mobile device.
The dashboard display provides the run data at a glance and you can
email this data alongside photos and notes direct to your PC making
your reporting easier.
* NOTE: Available
on the Plus & Pro models only
|
Easy User Interface
|
Easy
4-Button Interface
Apex2 IS simple user interface
using only 4 buttons. Easily navigate through the color coded start
and set-up menus - just requiring one key press to start or continue
a run. Data from the current run/last run is continually displayed clearly
allowing you to, at a glance, refer or make notes on your sample.
|
Casella
Apex2 IS Specifications
| Flow
Performance |
|
| Flow
Range ml/min |
1000-5000 |
| Low
Flow Range ml/min |
5-500,
requires an adapter |
| Flow
Control |
<
± 5% at calibrated point |
| Pulsation
|
<10%
@ 2L/min |
| Fault
Detector |
Auto
Restart |
| Operating |
|
| Display: |
Color
OLED |
| Controls |
4
buttons |
| Status
Indicators: |
Red/Green
LED |
| Dimensions: |
112x37x102mm |
| Weight |
480g |
| Environmental |
|
| Temperature |
Operation,
0 - 45@°C
Storage, -10 - 50@°C |
| Humidity |
30-95%
RH (non-condensing) |
| Barometric
Pressure |
Auto-correcting |
| Electrical |
|
| Battery
Type |
Li-ion
with level indicator |
| Battery
Level Indicator |
Yes |
| Battery
Life |
>9hours |
| Chargers |
Single
or 5-way |
| Charge
time |
Typically
<6hrs |
Bluetooth®
4.0 Connectivity Interface
Apex2 IS Pump
in Cradle Charger
|
| Approvals |
All models
of the Apex2 are Intrinsically Safe. The Apex2 has been designed
specifically to be used in potentially explosive areas in the
oil and gas, petrochemical and pharmaceutical industries as well
as being suitable for use in the mining industry
Ex ia I Ma
Ex
ia IIC T4 Ga
Ex ia IIIC T1350C Da
(Ta = -200C to +450C)
|
| Datalogging
& Display |
| Storage |
200
separate runs |
| Data |
Start
time, date, duration, volume, motion index |
| Interface
Display |
Status,
battery charge, memory free, start time, run duration, flow rate,
volume sampled, inlet pressure, motion index, blockage restarts,
temperature, battery remaining. |
Apex2
IS Models and Accessories
Apex2
IS Models
|
| Apex2IS |
Apex2
IS Standard Pump |
| Apex2ISPlus |
Apex2
IS Plus Pump |
| Apex2ISPro |
Apex2
IS Pro Pump |
| Apex2
IS Kits (1,
2, 3, 5 & 10 pack & custom kits available) Kits Include
pump(s) with rubber boot, 3-ft tubing per pump, (1) male leur adapter
per pump, Calibration Certificate (s); docking station(s), carry
case |
| APEX2IS/K5 |
5-Pack
Apex2 IS Standard Kit |
| APEX2ISPLUS/K5 |
5-Pack
Apex2 IS Plus Kit |
| APEX2ISPRO/K5 |
5-Pack
Apex2 ISPro Kit |
| Apex2
Accessories |
| APEX2
Upgrades |
Call
for information to upgrade Apex2IS or Apex2IS Plus to Apex2IS Pro
functionality |
| 209025C |
Replacement
protective rubber boot for Apex2IS Series pumps |
| CMC51 |
Cable
USB, A to Mini B |
| 209152B/KIT |
1-Unit
Apex2IS Series docking/charging base, with PC28 power supply and
CMC51 USB cabl |
| 209156C/KIT |
5-Unit
Apex2IS Series docking / charging base, with PC28 power supply and
CMC51 USB cable |
| 209121D |
5-unit kit
case for Apex2IS series pumps |
| 209023B |
Replacement
belt clip for Apex2IS Series pumps |
| 209126A |
Inlet
nozzles for Apex2IS Series, 5-pack |
| 209127A |
Inlet
filters for Apex2IS Series, 10-pack |
|
