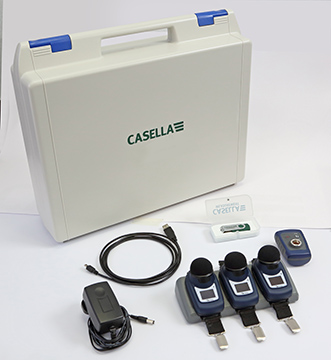

Casella K/3 Dosimeter
Kit Contents
(Case type may vary)
Easily Clips
to Collar
Easy User
Interface -dBadge2
Pump
in 3-Position Docking
Station & Charger
|
Casella
dBadge2 IS Bluetooth Wireless Noise Dosimeters
Color Screen Display,
Motion Sensor, Multiple Dosimeter Capability,
with
Audio Recording, Octave Band RT Noise Analysis Options
The micro-sized
dBadge2 IS™ intrinsically safe, cable-free, shoulder-mounted noise dosimeter
with wireless Bluetooth technology allows you to REMOTELY control the
dBadge2 dosimeters and view noise exposure data from multiple workers,
right on your cellphone or tablet
without having to disturb the wearer.
Email run data
alongside any photos or notes to make your reporting easier. Includes
a user lock to avoid any interference during a run, and highly visible
status indicator. Simple
dosimeter user interface using only 2 buttons.
Casella dBadge2IS
DataSheet
Casella
dBadge2IS User Manual
dBadge2
IS with Bluetooth® 4.0
Connectivity -
Use with
Apple or Android Devices
Bluetooth® 4.0
wireless connectivity with the supporting free Airwave App allows you
to remotely start, stop or pause a measurement run, monitor battery
life and memory capacity, check measurement progress and alarms without
having to disturb the worker who may be involved in a critical task
or be otherwise inaccessible. Use your own Apple or Android device.
The dashboard display
provides the run data at a glance and you can email this data alongside
photos and notes direct to your PC making your reporting easier.
Noise
Recording
It
also provides the facility to record the actual noise associated with
triggered events as defined by user-settable exceedance and parameters
based on 1 second SPL or LPeak or LMAX profile data.
3-Dosimeter Data Logging
These simulated dosimeters termed
D1, D2 and D3 simply define the measurement parameters that are displayed
on screen or that appear on the Airwave App. The
primary dosimeter, D1, provides access to any LAVG or LEQ based noise
dose parameters plus a comprehensive set of related noise measurement
parameters. There are pre-defined ISO, OSHA, MSHA, and ACGIH setups
(selectable from the dBadge2 itself) but also a fully custom configured
mode using Casella Insight data management software.
Dosimeters D2 and D3 allow you
to display additional LAVG based noise dose results based upon their
associated Threshold (T), Criterion (C) and Exchange rates (or Q factor).
As an example, you may wish to simultaneously compare noise exposure
data based upon the OSHA Personal Exposure Limit (PEL) or Hearing Conservation
(HC) setups
Built-In Motion
Sensor
The built in motion
sensor expresses a worker's movement as a percentage of the time that
motion has been detected during a measurement run. This means that you
can be confident that the dBadge2 has been worn for the entire shift
and therefore that the data from the measurement run is valid.

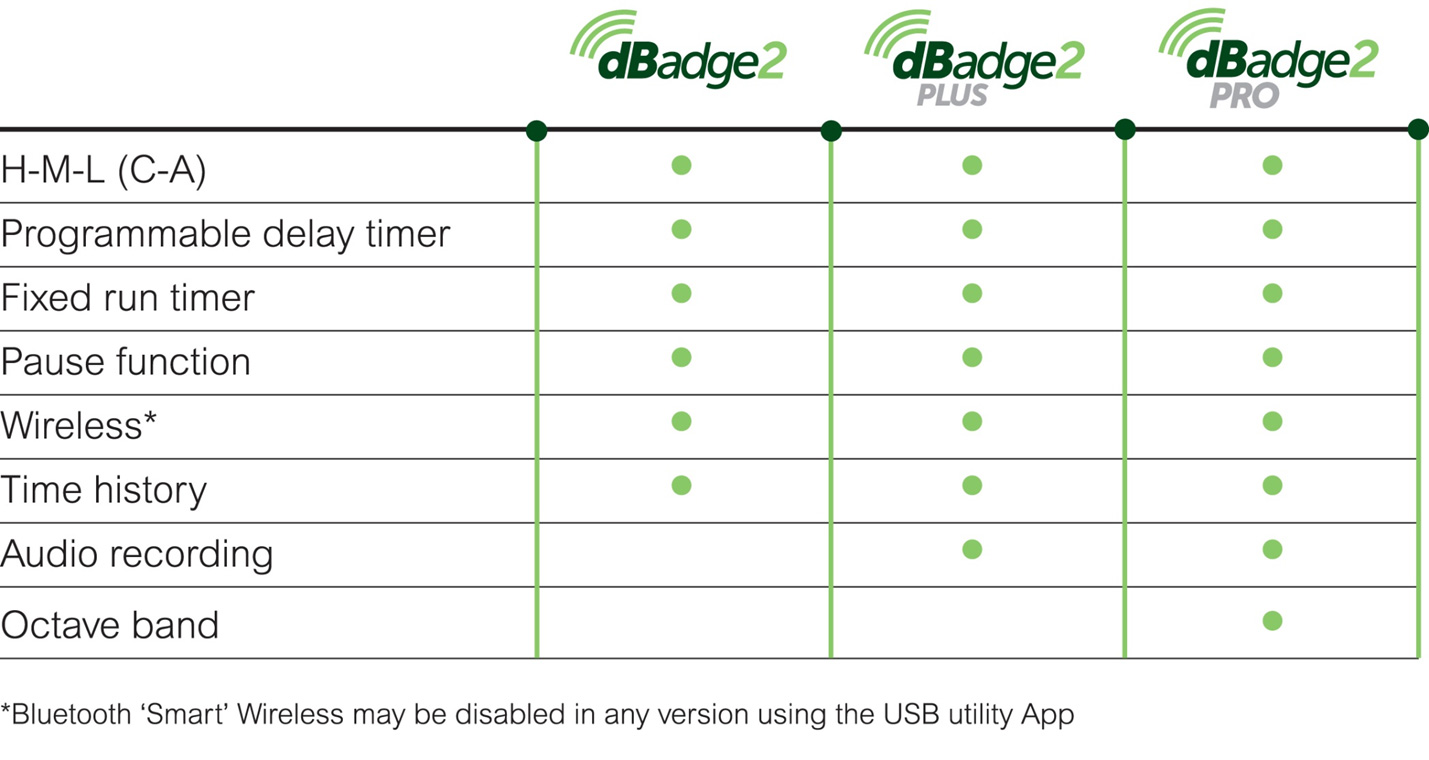

Casella dBadge2 Models & Accessories
The dBadge2 IS
dosimeters are intrinsically safe an davailable as either Basic,
Plus or Pro models. Non-IS models are also available.
dBadge2 dosimeters
are available as 'kits' which means you receive the dosimeter along
with all the items necessary for daily calibration and use. Kits can
be configured to have from a single dosimeter plus a docking station/battery
charger and cable, acoustic calibrator, software and carrying case;
and kits may contain as few as a single dosimeter all the way up to
ten dosimeters plus appropriate accessories.
dBadge2
IS Models - Available in Kits - Contact us For Details
|
| dBadge2IS
|
dBadge2IS
Personal Noise Dosimeter |
| dBadge2ISPlus |
dBadge2IS
Plus Personal Noise Dosimeter with Audio Recording. |
| dBadge2ISPro |
dBadge2IS
Pro Personal Noise Dosimeter with Audio Recording and Real-time
Octave Band frequency analysis, |
| dBadge2IS
- Note |
The
Airwave App can be downloaded at no charge from the Apple App Store
(for iOS) and Google Play Store (for Android). The dBadge2 Data
Download Utility is not supplied, but can be download at no charge
from the Casella website. |
| dBadge2
Accessories |

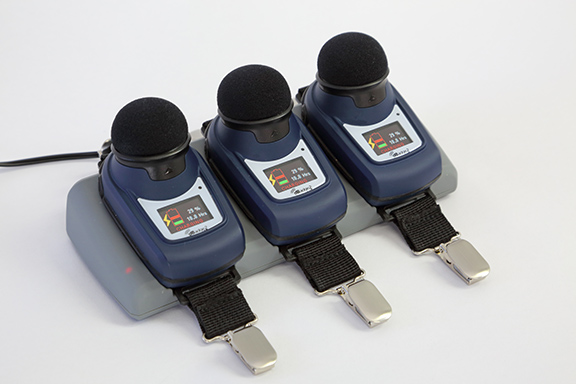

| 207107B/P
|
3-way
combined Docking Station and Charger only |
| 207107B/KIT |
3-unit
charger/docking base with (1) CEL-PC18 universal power supply and
(1) CMC51 USB cable, for dBadge2IS Series |
| 207107B/EXT |
3-unit
charger/docking base with (1) C6359/0.2 link cable, for dBadge2IS
Series |
| CEL-120/2 |
Class
2 Acoustic Calibrator |
| dB2Case/10 |
Carrying
case, holds up to (10) dBadge2 Series dosimeters with accessories
|
| dB2WS |
Foam
windscreens for dBadge2 Series dosimeters, 5-p |
| dB2Clips |
Alligator
mounting clips for dBadge2 Series dosimeters, 5-sets |
| CEL-PC18 |
Universal
power supply 110/240 VAC to 12 VDC with worldwide adaptors for dosimeter
charging bases |
| C6359/0.2 |
Spare
lead for connecting master & extension Docking Stations |
| CMC51 |
Communications
cable, USB Mini B to USB A for dBadge2 Series docking station |
| CEL-252 |
Replacement
1/2-inch general purpose microphone, free field, Class 2, for use
with dBadge2 Series dosimeters |
|
