 70-SERIES
Fixed Flow Regulator
The
most popular regulator is used with the 34,
58, 74, 105, 116 liter aluminum cylinders
and the 103 liter
steel cylinders. Completely
nickel plated brass, this high quality regulator is cost effective &
a convenient method of gas flow regulation.
Gasco can customize the flow rate
between 0.1 LPM to 6.0 LPM.
Gauge
PSI: 1500 psi
Valve Inlet: C-10
|
|
70-SS SERIES Fixed Flow Regulator
(Stainless Steel Regulator)
The
highest quality regulator is used with
the 34, 58, 74, 116
liter aluminum cylinders and the 103
liter steel cylinders.
Constructed of stainless steel, it is recommended for use with reactive
gases such as Chlorine, Hydrogen Chloride and Ammonia.
Gasco can customize the flow rate
between 0.1 LPM to 6.0 LPM.
Valve
Inlet: C-10
|
|
|
71-SERIES Fixed Flow
Regulator
Completely nickel plated brass, this regulator is used with
17 & 34 liter
steel cylinders. Available with an on/off "push button"
option as a special order.
Gasco can customize the flow rate
between 0.1 LPM to 6.0 LPM.
Gauge PSI: 600 PSI
Valve Inlet: CGA 600
|
|
73-PBR SERIES Fixed
Flow "Push Button" Regulator
The same as the 70-Series but has an on/off "push button"
as opposed to the "turn knob" of the 70-Series Regulator.
Gasco can customize the flow rate
between 0.1 LPM to 6.0 LPM.
Gauge PSI: 1200 PSI
Valve
Inlet: C-10
|
|
|

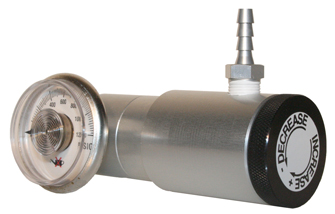

74-DAF-REG Dial-A-Flow
Regulator
This regulator is used with
the 34, 58, 74, 105, 116
liter aluminum cylinders and the 103
liter steel cylinders. Highly versatile with nine flow settings it's
easily adjustable by clicking from one flow setting to another.
11 Flow Rates:
0.3, 0.5,1.0, 1.5, 2.0, 2.5, 3.0, 5.0, 6.0, 7.0, 8.0 LPM
Gauge PSI: 1200 PSI
Valve Inlet: C-10
|
|
75-DFR-1500
Demand Flow Regulator
This regulator can be used with
all cylinders with C-10 connections such as the 34,
58, 74, 105, 116 liter aluminum cylinders
and the 103 liter
steel cylinders.
Flow Rate: On Demand
For a Pump Drawn Flow of:
0-3.0 LPM @ 3” Wc Vacuum
Gauge PSI: 1500 PSI
Valve Inlet: C-10
|
 |
70-Trigger Regulator
Fixed flow trigger style regulator used for
bump-testing, 0.5 LPM flow
Gauge
PSI: 1500 psi
Valve Inlet: C-10
|
|
75-DFR Demand Flow Regulator
This regulator is used with
the 34, 58, 74, 105, 116
liter aluminum cylinders, the standard and the 103
liter steel cylinders.
Flow Rate: On Demand
For a Pump Drawn Flow of 0-3.0 LPM
Gauge PSI: 1200 PSI
Material: Brass, Nickel
Plated Brass
Valve Inlet: C-10
or CGA 600
|
|
|
72-MFV
Mini Flow Valve & Flowmeter with Gauge
This
valve/flow meter is used with 17 & 34,103 liter steel cylinders, 74, 58, 116, 34, 44, 66, 116 alumimum cylinders
It offers a low cost and convenient method of gas flow regulation between
0.5 to 1.51 LPM
Part#s:
72-MFV/CGA600, 72-MFV/CGA600-P, 72-MFV/C10
Valve
Inlet: CGA600 or C-10
|
|
CV-2 Control Valve
This valve/flow meter is used with 17 & 34 Liter Steel Cylinders.
Material:
Brass
Valve Inlet: CGA 600
|
