Casella
- TUFF Personal Sampling Pumps
|
|
TUFF
Personal Air Sampling Pumps
|
|||||||||||||||||||||||||||||||||||||||||||||
|
TUFF
3 Models:
800 to 3000 ml/m |
TUFF 4 Models
800 to 4500 ml/m |
|
|
Standard: simple manual control air monitoring Plus: adds programmable duration sampling Pro: adds advanced programming features |
||
|
(Use
a low flow adapter for flow rates below 800) |
||
Power for the TUFF pumps is provided by
the rechargeable 4.8V NiMH battery packs which provides over 40 hours
of run time at 2 liters per minute flow rate..
TUFF pumps are extremely rugged and IP54 rated gasket sealed case protects
against the ingress of unwanted moisture and dust. They are a perfect
choice for even the most hostile of industrial environments. With their
simple 4-botton operation, easy menu navigation, outstanding run times
and performance, TUFF pumps provide excellent functionality and value
for the money.
Casella
TUFF Brochure
Casella
TUFF Pump
(5-½" x 3-½" x 2" / 17 oz)
Part # P303110
single TUFF Standard pump with NiMH battery pack
Part # P303111 single TUFF 3 Standard pump with NiMH battery
pack and 197020B universal charger unit
|
TUFF
Pump Key Features
|
||||
TUFF Standard personal sampling pumps are an excellent entry model for conducting basic sampling
 Simple
manual ON/OFF control |
| Easy
4-button user interface with security lockout |
| LCD
Display: elapsed run time counter & run mode |
| Simple
battery life indication |
| Available
in two versions |
| TUFF
3 model with flow rates up to 3.0 l/m |
| TUFF
4 model with extended flow rates up to 4.5 l/m |
| Flow
rate set with an external flow calibrator or rotameter |
| Use
a low flow adapter for flow rates 5 to 200 ml/m for gas/vapor
measurements |
| Stable
flow settings for reliable operation during use |
| Choice
of regular or enhanced rechargeable NiMH battery pack |
| Available
with or without drop in charger unit |
| High
visibility LEDs for error condition warnings |
| Reinforced
LCD screen on top of pump |
| Case
has rubberized feel finish which resists dirty finger prints |
| Multi-language
instrument firmware and Windows™ Pump Manager software |
| Easy
field replaceable inlet port in case of damage |
| Inlet
port filter to minimize entry of fine dust particles in very dirty
nvironments |
| Run
times up to 45 hours at 2 l/m with 25 mm GFA filter |
| Available
singly and in three or five packs in a strong toolbox kit case |
| No
pump upgrade capability |

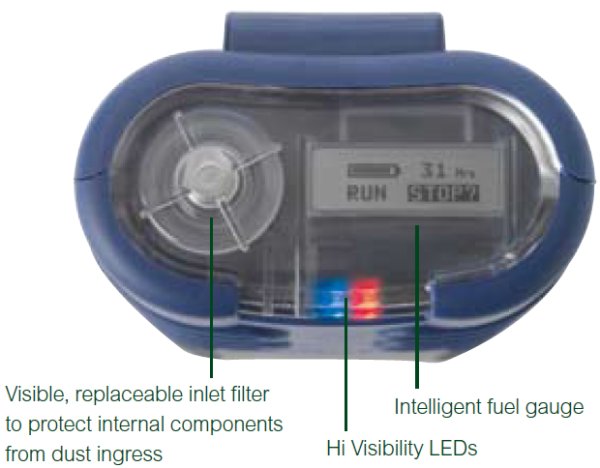

Casella
TUFF Pump Display
(Click on Images for Larger View)
Casella TUFF Pump Features
Part # P303110 model TUFF 3 Standard pump with battery pack and no charger P303110
The TUFF Plus pumps have all the features of the TUFF Standard with the additional option for fixed duration measurements
| Programmable
Run Duration |
| LCD
Display: flow set point, real time flow rate, accumulated sample
time and volume. |
| Simple
battery life indication |
| Use
with all Casella and other major brands of sampling heads and accessories |
| Very
stable volumetric control of flow rate with ±3% flow accuracy Long
term stability between calibrations |
| Recharges
NiMH battery in less than 3 hours using the drop-in fast single
charger 3-way
charging station recharges batteries in less than 5 hours |
| TUFF
Plus model is upgradeable to TUFF Pro model version |
TUFF Pump 3-Way Charging Station
Part # 3 x P304220 TUFF 4 Plus pumps with enhanced NiMH battery packs and 197021B 3-way charger
TUFF pump three way drop-in charger is powered by the universal 12 Vdc plug top transformer
The Pro pumps have
all the features of the TUFF Standard and Plus models plus delayed start
and stop run modes with built in timers and datalogging.
| Advanced
program functionality & download capabilities |
| Up
to 9 delayed start and stop run modes with built-in timers |
| Fixed
duration sampling time |
| Stores
up to 100 runs in memory |
| TWA
on/off representative sampling regime over the entire run |
|
|
| Very
stable volumetric control of flow rate ±3% flow accuracy |
| Long
term stability between calibrations |
| Intelligent
battery management |
| The
3-way charger recharges batteries in less than 5 hours |
| Single
fast charger recharges batteries in less than 3 hours. |
| Intelligent
"fuel gauge" display shows the true battery life remaining |
| Use
with all Casella and other major brands of sampling heads and accessories |
| Infrared
(IR) wireless PC communication with TUFF Pro model |
| Windows™
Pump Manager software available for the TUFF Pro models |

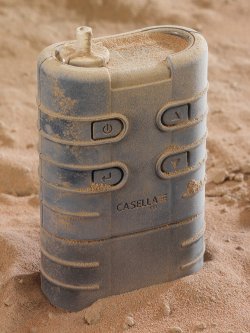

TUFF Pump in Hostile Sand Environment
Part # P304320
single TUFF 4 Pro pump with enhanced NiMH battery pack
Part # P304320/K5
5 pack kit of TUFF 4 Pro pumps with enhanced battery pack and 2 x 3
way charger units, infra red interface and software in tool box style
kit case
Pump Manager Software
| Infrared
(IR) link adapter eliminates the need for cables to connect the
pump to a computer. |
| Simply
line up the IR ports on the adapter and the pump in line of-sight
about 2 to 3 inches apart and the Casella Pump Manager software
takes control of the communications |
| All
completed runs in the pump are automatically transferred to
the computer |
| Use
the IR link adapter to send setup configurations to a TUFF Pro version
pump for delayed start and stop runs |
| IR
link and Pump Manager Software are included with all TUFF Pro 5
pack kits |
| Software
available as an option with smaller numbers of TUFF pump kits based
on individual user's requirements |
| Sampling Accessories |
| Filter
heads |
| Sampling
media |
| Bubblers
and impingers |
| Tubing,
gas bags |
.
TUFF
Pump with IR-link Adapter
Pump
Manager Reports
|
|||
|
PUMP
OPERATING MODES
|
TUFF
Standard
|
TUFF
Plus
|
TUFF
Pro |
|
Flow Rates: 3000 ml/m in TUFF
3 Models |
 |
|
|
|
Battery Pack: Enhanced battery pack 2.7 Ah |
|
|
|
|
Simple Run Mode: Set flow rate, then manually start & stop the pump |
|
|
|
|
Duration Run Mode: Program a fixed sampling time using the pump keypad. The pump will turn off at the selected time. |
NA
|
|
|
|
TWA Mode: Sampling a set volume at a low flow rate and needs this to be a representative sample over a longer sampling time. |
NA
|
NA
|
|
|
Program Schedule Mode: Two sets of START & STOP timers with up to 9 ON/OFF routines for each program |
NA
|
NA
|
|
|
Infrared (IR) Download Mode: IR wireless communication with PC Software. Download up to 99 events from the pump memory |
NA
|
NA
|
|
|
All
TUFF models comply with NIOSH 0600, EN1232 and MDHS 14/3 methods
|
|||
|
Tuff Pump Kit |
|||
|
