OI-9900
WireFree™ Signal Repeater
Explosion-Proof - DC Powered
Dual Antenna
The OI-9900 WireFree Repeater is a wireless device that receives messages from a remote sensor assembly and repeats the identical message to a receiver/monitor, allowing for greater distance between devices than with a sensor assembly/monitor setup alone. The Repeater operates with 12-35 Volts DC, and is equipped with two antennas and two radios.
Application areas include pipelines, paper mills, waste management, food processing, manufacturing plants.
Explosion-proof enclosure & antenna coupler
for use in extreme environments
Glass
lid for viewing the display
Non-intrusive setup with MENU, ADD and SUB buttons
ensures FASTER,
CHEAPER and EASIER installation
32 Channels - receives transmissions from up to 32 devices
Individually
configurable Low & High Alarm set-points per channel
Reduces the need for costly wired systems
Network settable,with potential to see all addresses on network
Use any Otis WireFree receiver to complete the wireless system
Radio Options:
Gen II radio 900 MHz, 200mW
(2.4 GHz ISM, 100mW available for international use)
OI-9900-X-O
WIreFree Signal Repeater
|
|||||
| Enclosure | Otis-Blue explosion/flame proof | ||||
| Display Screen | 102x64
Resolution Graphical LCD Screen Transflective (Sunlight Readable) with LED Backlight |
||||
| Size & Weight |
5.42 in. L x 6.03 in. W x 12.16 in. H (Max. Dimensions w/ Attachments) 7.5 lbs |
||||
| Interface | Three push buttons (MENU, ADD, SUB); three corresponding magnetic, non-intrusive switches; non-intrusive calibration | ||||
| Channels | 32 (receives transmissions from up to 32 devices) | ||||
| Network | 52
Networks (GEN II 900 MHz Radios) 78 Networks (GEN II 2.4 GHz Radios) 255 Addresses per Network |
||||
| Tamb Temperature Range | -40°
F to 140° F -40° C to 60° C |
||||
| Power Type | Wired Power | ||||
| Operating Voltage | 12-35 Volts DC | ||||
| Current Draw | 150 mA Maximum at 24 Volts DC | ||||
| Protection |
Power Electromagnetic Interference (EMI) Filter |
||||
| Fuses | PTC (automatic resettable) Non end-user replaceable | ||||
| Product Compatibility | All Otis GEN II WireFree Sensors | ||||
| WireFree Radio Options | Two
GEN II 900 MHz (200 mW) Radios or Two GEN II 2.4 GHz (125 mW) Radios |
||||
| Certifications | Class I, Division 1, Groups C and D | ||||
| Warranty |
Hardware - one year (limited) |
||||
| Part Number Formula | OI-9900-[Radio]-O
OI-9900-X-O |
||||
|
|||||

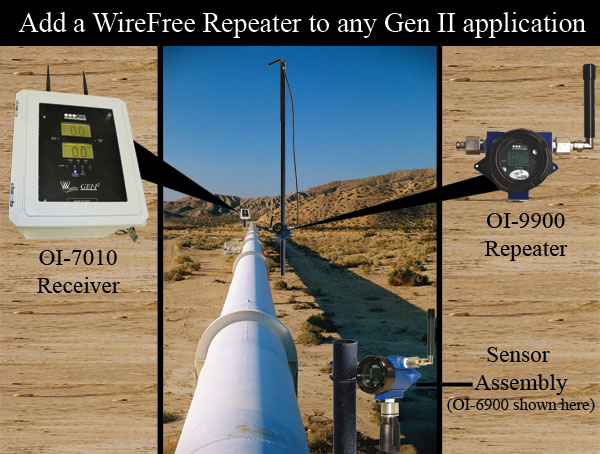

OI-9900 WireFree Signal Repeater Used in the Field

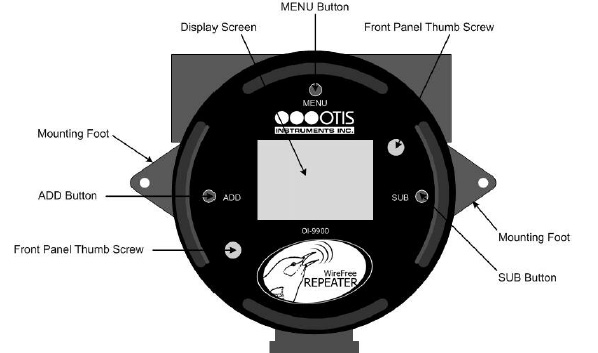

OI-9900 WireFree Signal Repeater Diagram |
|||||
WARNING!
Otis Instruments equipment should only be used in conjunction with the
manufacturer's instructions.
Failure
to follow such instructions could result in serious injury or fatalities.
|
